PA-2XNL Replacement Parts

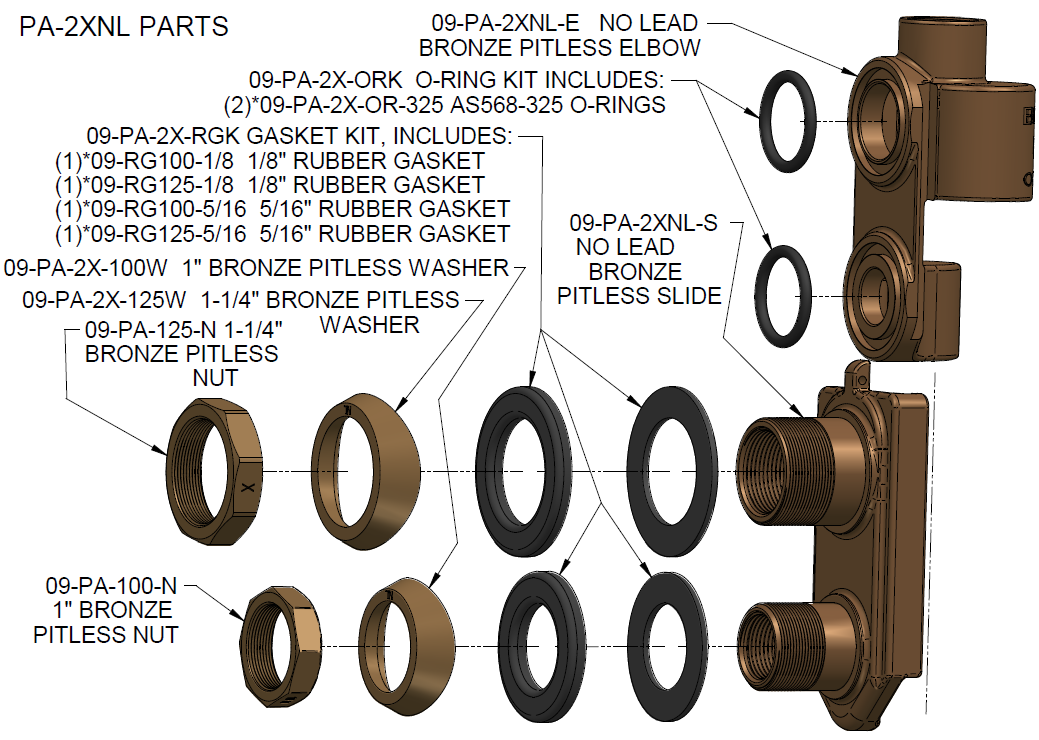

The diagram below details the replacement parts for the model PA-2XNL No-Lead Bronze Double Pipe Pitless Adapter.

Note that gaskets and O-Rings are sold as kits, the O-ring kit is for Pitless adapters manufactured prior to mid 2002. In 2002 the Pitless was updated to use readily available “off the shelf “ O-rings made to AS568 North American Standard O-ring. The O-ring size number is 325.
