Can I field install a pulsation plug in my pressure switch?

Yes, you can purchase the pulsation plugs separately in bag quantities to keep on your service truck. A pulsation plug is a plastic disc which has a very tiny hole in the center which allows water to pass through at a significantly reduced flow rate. It is basically an economy (low cost) pressure snubber.

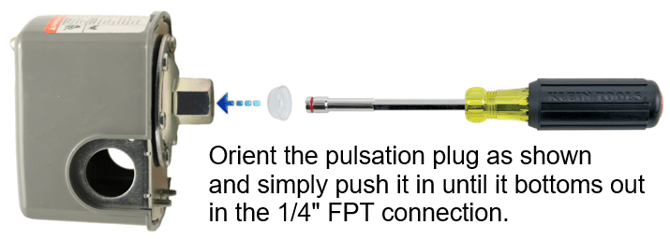

They can be easily field installed by simply pushing the plug into the ¼” FPT connection of a pressure switch before threading it onto the pressure line (pipe nipple) on the tank tee or pump.

Pressure switches can also be purchased with the pulsation plugs factory installed.

Part Numbers:

Square D – 9013FSGJ21P

BOSHART "BII" – PS02P-3050
