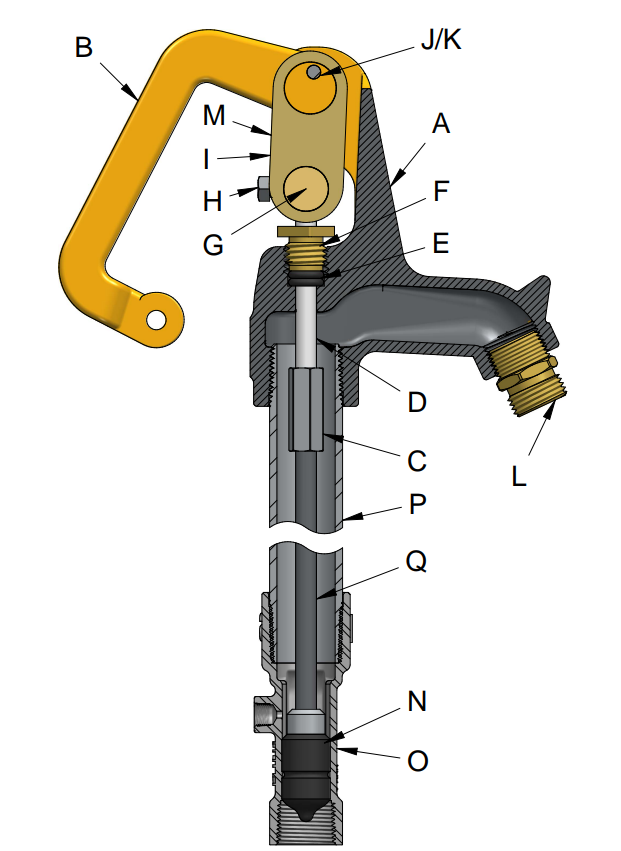

Part Number |
|
Description |
|
13YH-H01-BOSHART |
A |
Heavy Duty Head Casting - Gold |
|
13YH-H02-BOSHART |
B |
Heavy Duty Handle – Gold |
|
13YH-H03SS-1.5 |
C |
3/8”-16NC Stainless Steel Hex Coupling |
|
13YH-H04 |
D |
3/8” x 4.42” Polished Stainless Steel Operating Rod |
|
13YH-H05 |
E |
AS568-204 Nitrile Butadiene Rubber (NBR/Buna-N) O-Rings (Required Quantity – 2) |
|
13YH-H06 |
F |
3/4"-10UNC Hex Brass Packing Nut |
|
13YH-H07 |
G |
1” Diameter Zinc Plated Steel Pivot Connector |
|
13YH-H08 |
H |
5/16”-18UNC x 3/4" Stainless Steel Square Head Set Screw |
|
13YH-H09 |
I |
Zinc Plated Draw Straps (Required Quantity – 2) |
|
13YH-H10/11 |
J/K |
1/4-20UNC Stainless Steel Handle Bolt and Lock Nut |
|
13YH-H12 |
L |
3/4" MPT x 3/4" GHT Brass Hose Bibb Adapter |
|
13YH-H13 |
M |
5/16-18UNC x 3/4” 18.8 Stainless Steel Thumb Bolt |
|
13YH-P875-SS |
N |
Nitrile Butadiene Rubber (NBR) Plunger on Stainless Steel Core (3/8-16UNC Connection) |
|
13YH-VB07-875SS |
O |
3/4" Connection Stainless Steel Valve Body 7/8” Bore |
|
13YH-SS10T-XXX |
P |
1” ASTM A312 Sch. 40 Stainless Steel Stand Pipe |
|
13YH-RSS-XXX |
Q |
3/8” Diameter Stainless Steel Connecting Rod (T.B.E. 3/8”-16UNC) |

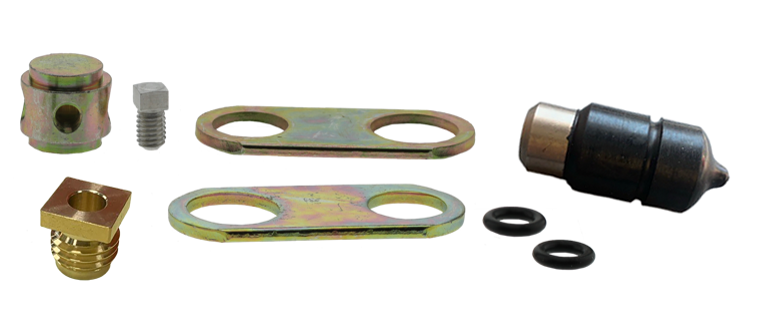

13YH-RK875 YHSS Series Yard Hydrant Repair Kit
|
Part Number |
|
Description |
|
13YH-P875-SS |
N |
Nitrile Butadiene Rubber (NBR) Plunger on Stainless Steel Core (3/8-16UNC Connection) |
|
13YH-H05 |
E |
AS568-204 Nitrile Butadiene Rubber (NBR/Buna-N) O-Rings (Required Quantity – 2) |
|
13YH-H06 |
F |
3/4"-10UNC Hex Brass Packing Nut |
|
13YH-H07 |
G |
1” Diameter Zinc Plated Steel Pivot Connector |
|
13YH-H08 |
H |
5/16”-18UNC x 3/4" Stainless Steel Square Head Set Screw |
|
13YH-H09 |
I |
Zinc Plated Draw Straps (Required Quantity – 2) |
Note: The 13YH-RK875 repair kit is the same for both the YHSS and YHBR series yard hydrants.
13YH-HA-BOSHART YHSS Series Yard Hydrant Head Assembly Kit
|
Part Number |
|
Description |
|
13YH-H01-BOSHART |
A |
Heavy Duty Head Casting - Gold |
|
13YH-H02-BOSHART |
B |
Heavy Duty Handle – Gold |
|
13YH-H03SS-1.5 |
C |
3/8”-16NC Stainless Steel Hex Coupling |
|
13YH-H04 |
D |
3/8” x 4.42” Polished Stainless Steel Operating Rod |
|
13YH-H05 |
E |
AS568-204 Nitrile Butadiene Rubber (NBR/Buna-N) O-Rings (Required Quantity – 2) |
|
13YH-H06 |
F |
3/4"-10UNC Hex Brass Packing Nut |
|
13YH-H07 |
G |
1” Diameter Zinc Plated Steel Pivot Connector |
|
13YH-H08 |
H |
5/16”-18UNC x 3/4" Stainless Steel Square Head Set Screw |
|
13YH-H09 |
I |
Zinc Plated Draw Straps (Required Quantity – 2) |
|
13YH-H10/H11 |
J/K |
1/4-20UNC Stainless Steel Handle Bolt and Lock Nut |
|
13YH-H12 |
L |
3/4" MPT x 3/4" GHT Brass Hose Bibb Adapter |
|
13YH-H13 |
M |
5/16-18UNC x 3/4” 18.8 Stainless Steel Thumb Bolt |
Note: The 13YH-HA-BOSHART head assembly kit is the same for both the YHSS and YHBR series yard hydrants.
13YH-RSS-XXX 3/8” Diameter Stainless Steel Connecting Rod Replacement
In the event you need to replace the connecting rod which connects the operating rod and coupling to the plunger, you will need to determine the length of the rod you need. If you know the bury depth of the hydrant from your installation records, you’re all set. If you do not have this info, no worries you can measure it easily as shown in the diagram below. The length of the connecting rod is the measurement between the hex coupling and the plunger + 1".
The rod will be threaded 1/2" into the coupling and the plunger!
|
Part Number |
Description |
|
13YH-RSS-036 |
3/8”x 36” Stainless Steel Connecting Rod Replacement – 1’ Bury |
|
13YH-RSS-042 |
3/8”x 42” Stainless Steel Connecting Rod Replacement – 1.5’ Bury |
|
13YH-RSS-048 |
3/8”x 48” Stainless Steel Connecting Rod Replacement – 2’ Bury |
|
13YH-RSS-060 |
3/8”x 60” Stainless Steel Connecting Rod Replacement – 3’ Bury |
|
13YH-RSS-072 |
3/8”x 72” Stainless Steel Connecting Rod Replacement – 4’ Bury |
|
13YH-RSS-084 |
3/8”x 84” Stainless Steel Connecting Rod Replacement – 5’ Bury |
|
13YH-RSS-096 |
3/8”x 96” Stainless Steel Connecting Rod Replacement – 6’ Bury |
|
13YH-RSS-108 |
3/8”x 108” Stainless Steel Connecting Rod Replacement – 7’ Bury |
|
13YH-RSS-120 |
3/8”x 120” Stainless Steel Connecting Rod Replacement – 8’ Bury |
|
13YH-RSS-144 |
3/8”x 144” Stainless Steel Connecting Rod Replacement – 9’ Bury |
NOTE! - It is extremely rare that you would need to replace a valve body or the standpipe. If you find either of these need replacement, it is likely after many years of service, and we would suggest that the entire hydrant be replaced at this point. In the event your soil or water conditions are causing accelerated corrosion on a galvanized standpipe or zinc plated steel connecting rod (YHBR series), a YHSS series hydrant should be installed to increase the life expectancy of the hydrant.
