What are the electrical ratings for a Hubbell (Furnas Brand) Class 69ES Pressure Switches?

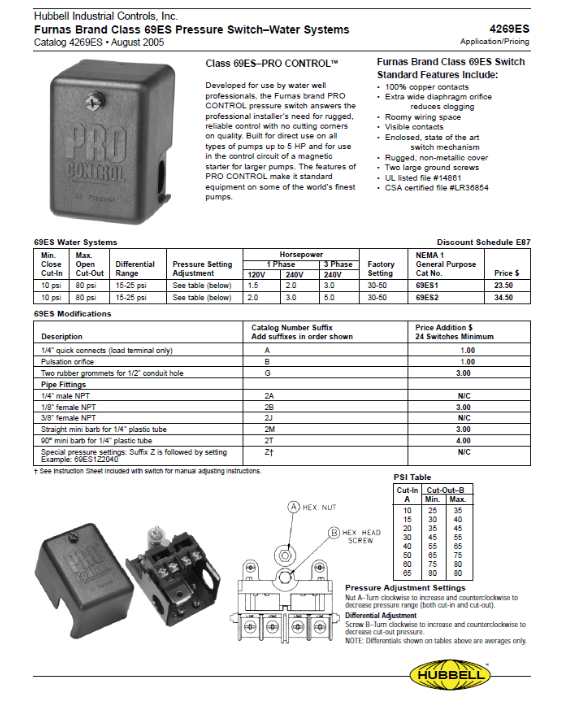

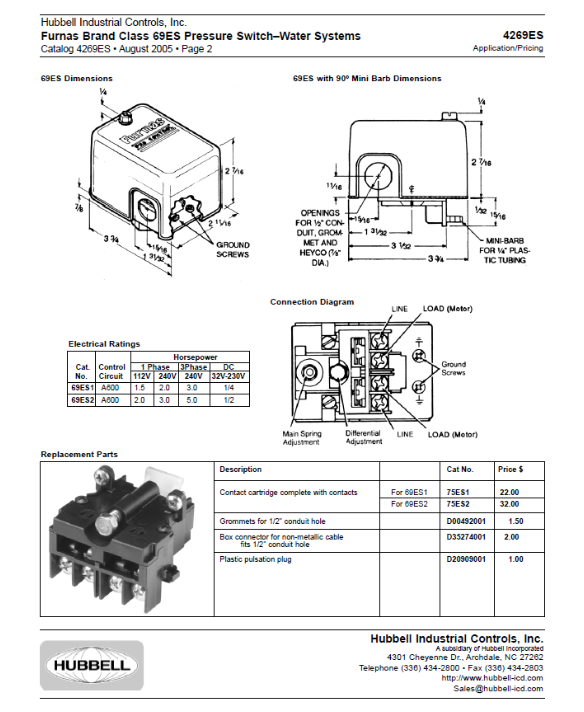

The charts below detail the Horse Power and Electrical Ratings for the Class 69ES HUBBELL (Furnas Brand) Pressure Switches.
