#1 - What are the advantages of Push-Fit fittings?
A push fit fitting is a compression type of fitting with an easy installation process and a watertight seal. They come in a variety of configurations, can be used in plumbing and heating applications, and have many advantages. Push-Fit fittings provide an easy and dependable way to join piping made to CTS (Copper Tube Size) such as PEX, COPPER, CPVC, HDPE or PE-RT pipe in any combination with basic tools and minimal plumbing knowledge / experience.
For more detailed information on the advantages of BOSHART Push-Fit fittings click here.
#2 -What is the pipe insertion depth for the BOSHART BPF and SSPF Push-Fit fittings?

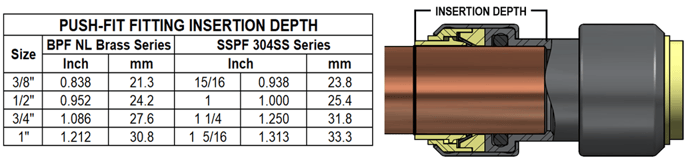

Suggested pipe insertion depth for BOSHART BPF and SSPF Push-Fit fittings varies depending on the material and size of the fitting. The insertion depths are detailed in the chart below.
For more detailed information on pipe insertion depth of BOSHART Push-Fit fittings click here.
#3 - Can BOSHART BPF and SSPF Push-Fit fittings be installed behind-the-wall?
The BOSHART BPF brass and SSPF 304 SS Push-Fit fittings are certified by IAPMO for concealed installation inside a wall. It is important to pressure test the system before closing in the wall.
For more detailed information on behind-the-wall installation of BOSHART Push-Fit fittings click here.
#4 - Can BOSHART BPF and SSPF Push-Fit fittings be used for Outdoor Fixtures?
Yes, while BOSHART BPF and SSPF Push-Fit fittings are generally used for indoor installations, they can also be used to plumb fixtures outside.
For more detailed information on using BOSHART Push-Fit fittings for outdoor fixtures click here.
#5 - Are BOSHART BPF and SSPF Push-Fit fittings approved for underground use?
Yes. Both the Boshart brass and 304SS push-fit fittings are approved by IAPMO for underground applications as long the fitting is wrapped with silicone tape. Self-fusing silicone tape protects both brass and stainless fittings from corrosive soil conditions and / or contaminants that can be found in the ground.
For more detailed information on using BOSHART Push-Fit fittings underground click here.
#6 - Do I need tools to connect BOSHART BPF and SSPF Push-Fit fittings?
No. You do not need any tools to connect BOSHART BPF and SSPF Push-Fit fittings. You will however need some basic tools for cutting and deburring and cleaning the tubing or pipe.
For more detailed information on tools needed to connect BOSHART Push-Fit fittings click here.
#7 - How do I disconnect the pipe from a BOSHART BPF and SSPF Push-Fit fitting?
A disconnect clip or disconnect tongs is required to push the collet inwards to disengage the gripper rings, with the gripper ring disengaged the pipe can be pulled out without damaging the pipe.
For more detailed information on disconnecting BOSHART Push-Fit fittings click here.
# 8 - Are BOSHART BPF and SSPF Push-Fit fittings reusable?
Yes. BOSHART BPF and SSPF Push-Fit fitting can be reused for testing purposes, but any fitting used repeatedly for testing must never be used in a permanent plumbing installation.
For more detailed information of the reuse of Push-Fit fittings click here.
#9 - Can BOSHART BPF and SSPF Push-Fit fittings be rotated on the pipe?
Yes. BOSHART BPF and SSPF Push-Fit fittings can be rotated after installation.
For more detailed information on rotating BOSHART Push-Fit fittings click here.
#10 – What applications are the BOSHART BPF and SSPF Push-Fit fittings suitable for?
BOSHART BPF and SSPF Push-Fit fittings are designed to be used in residential and commercial applications to transfer water, most commonly used for potable water systems and recirculation hydronic heating and cooling systems with glycol solutions up to 100% concentration.
For more detailed information on the application suitability of BOSHART Push-Fit fittings click here.
#11 - What is the maximum temperature and pressure rating for BOSHART BPF and SSPF Push-Fit fittings?
BOSHART BPF NL Brass Push-Fit fittings are certified to 200 PSI (1379 kPa) and 200°F (93°C).
BOSHART SSPF 304 SS Push-Fit fittings are certified to 300 PSI (2068 kPa) and 200°F (93°C).
For more information on temperature and pressure ratings of BOSHART Push-Fit fittings click here.
#12 - What types of piping can BOSHART BPF and SSPF Push-Fit fittings be used with?
BOSHART BPF and SSPF Push-Fit fittings are designed for use with piping systems made to copper tube size (CTS) certified for use with Copper, PEX, CPVC, PE-RT & HDPE pipe.
For more detailed information on the types of piping BOSHART Push-Fit fittings can be used with click here.
#13 - Can the stiffener insert be removed from the BOSHART BPF and SSPF Push-Fit fittings?
Yes, the stiffener can easily be removed with the aid of the disconnect clip or disconnect tongs to push in the collet and allow for the stiffener to be pulled out.
For more detailed information on removing the stiffener insert from a BOSHART Push-Fit fitting click here.
#14 - What should I do if a Push-Fit fitting leaks after installation?
Review the installation instructions to ensure all the pipe preparation and installation steps have been followed. Only use dishwashing liquid soap and water to detect plumbing leaks. Avoid using 'Leak Detector' spray products.
For a list of the most common causes for a leaking BOSHART Push-Fit fitting connection click here.
#15 - Do BOSHART BPF and SSPF Push-Fit fittings hold up in freezing temperatures?
The water systems should never be allowed to freeze. Fitting failures caused by freezing are not covered under warranty.
For more detailed information on BOSHART Push-Fit fittings and freezing temperatures click here.
#16 - Can I solder a fitting close to a Push-Fit fitting?
Soldering copper fittings close to a Push-Fit fitting should be avoided.
For more detailed information on soldering close to a BOSHART Push-Fit fittings click here.
#17 - Are BOSHART BPF and SSPF Push-Fit fittings certified for hydronic heating system?
Yes. BOSHART BPF and SSPF Push-Fit fittings are certified for and can be used for hydronic heating applications, including glycol mixtures used in hydronic up to and including 100% glycol.
For more detailed information on BOSHART Push-Fit fittings and hydronic heating systems click here.
#18 - Can I use Push-Fit fittings as a dielectric union?
It depends on the item. The standard BPF Brass and SSPF fittings such as couplings, elbows, tees, male & female adapters for example cannot be used as a dielectric union.
For more detailed information on the use of BOSHART Push-Fit fittings as a dielectric union click here.
#19 - Can Spray-foam Insulation be directly applied to Push-Fit fittings?
No! The fittings must be protected against direct contact with the SPF insulation by wrapping the fitting(s) with silicone pipe wrap. The same precautions must be taken when installing in areas where contact with primers, solvents, solvent cements and firestops.
For more detailed information on using Spray-foam Insulation around BOSHART Push-Fit fittings click here.
#20 - What standards & codes are BOSHART BPF and SSPF Push-Fit fittings in compliance with?
BOSHART BPF and SSPF Push-Fit fittings comply with the following standards & codes and have the following certifications / approvals:
- National Plumbing Code Standard ASSE 1061-2020
- International Plumbing Code (IPC)
- Uniform Plumbing Code (UPC), & National Plumbing Code of Canada
- NSF/ANSI Standard 61 & 372 Certified
For more detailed information on standards and code compliance of BOSHART Push-Fit fittings click here.
#21 -Do you need a pipe stiffener with BOSHART BPF and SSPF Push-Fit fittings?
Yes. A pipe stiffener sometimes referred to as a pipe support or tube liner is required when used in conjunction with CTS (Copper Tube Size) PEX, PE-RT or HDPE pipe.
For more detailed information on using a pipe stiffener with BOSHART Push-Fit fittings click here.
#22 – Can BOSHART BPF and SSPF Push-Fit fittings withstand UV Exposure?
BOSHART BPF and SSPF Push-Fit fittings are resistant to damage from UV light and do not require special care to protect from exposure. Always check the pipe manufacturer’s installation guidelines for any additional safety precautions.
#23 - How long can a BOSHART BPF and SSPF Push-Fit fittings fitting last?
BOSHART BPF and SSPF Push-Fit fittings have an expected lifespan similar to that of copper pipe which is fifty to seventy years. PEX piping, due to its flexibility and durability, is expected to last at least 50 years. PVC / CPVC pipe, under typical conditions, should last up to 100 years.
For more detailed information on the life span of a BOSHART Push-Fit fitting click here.
#24 – What is the warranty coverage on the BOSHART BPF and SSPF Push-Fit fittings?
BOSHART BPF and SSPF Push-Fit fittings carry a 25-year warranty against any manufacturer’s defect as long as the item has been installed in accordance with the installation instructions and complies with all national and local code plumbing codes.
For more detailed information on the warranty coverage of BOSHART Push-Fit fittings click here.
#25 – Is there any concern regarding 304SS and Copper being in contact?
No. While it is always best practice to avoid having dissimilar metals in direct contact whenever possible, the Stainless Steel and Copper and Brass metals used in the manufacture of our BOSHART BPF and SSPF Push-Fit fittings get along. The galvanic action is rated as insignificant.
For more detailed information regarding 304SS and copper being in contact when using a BOSHART SSPF Push-Fit fitting click here.
#26 – What is the warranty coverage on the BOSHART BPF and SSPF Push-Fit Ball Valves?
Ball valves have moving components which are subjected to normal wear and tear, they are often used in applications with high frequency operation (open – close cycles). Due to the unknown variables of how often they may be operated, ball valves are covered under a 5-year warranty - a shorter warranty period than the Push-Fit fittings.
For more detailed information on the warranty coverage of BOSHART Push-Fit Ball Valves click here.
