Pitless Adapter

PA-125NL Replacement Parts

PA-125NL Replacement Parts

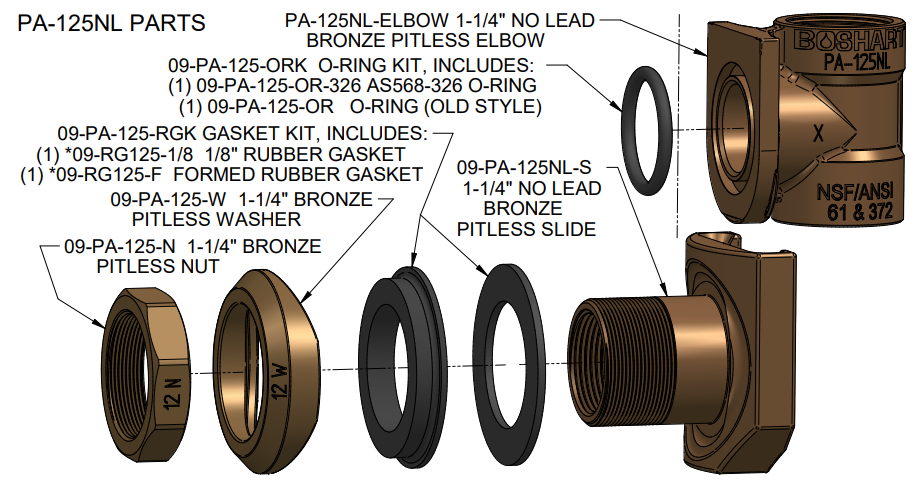

The diagram below details the replacement parts for the model PA-125NL No-Lead Bronze Pitless Adapter.



Note that gaskets and O-Rings are sold as kits, the O-ring kit is for Pitless adapters manufactured prior to mid 2002. In 2002 the Pitless was updated to use readily available “off the shelf “ O-rings made to AS568 North American Standard O-ring. For easy identification the O-ring number 326 was molded on the Pitless elbow casting, if you have an older model, it will not have an O-ring number molded on the casting.
