How to install a SPWB-10 Sump Pump Water Box
How to install a SPWB-10 Sump Pump Water Box

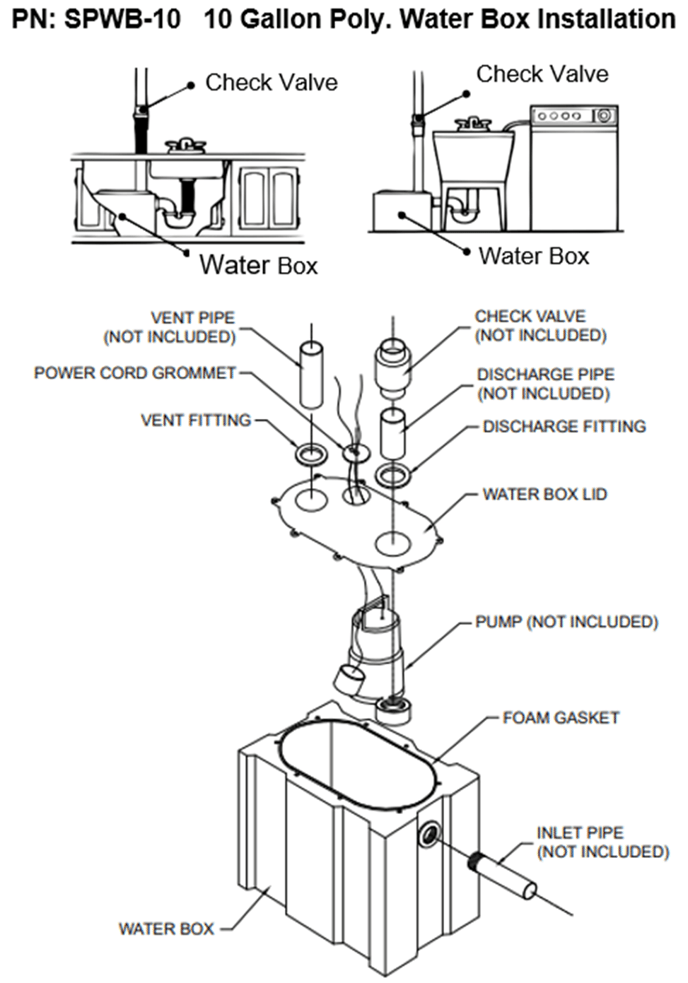

The diagram below details typical installations and a SPWB-10 installation diagram covering the included components supplied with a SPWB-10 water box and the basic installation of the inlet, discharge, and vent piping. Piping and the check valves need to be purchased separately.
Additional Resources:
https://support.boshart.com/how-do-i-select-a-check-valve-for-my-sump-pump-application
