How do I install a 850-WSF Water Sensor on my High Level Alarm?

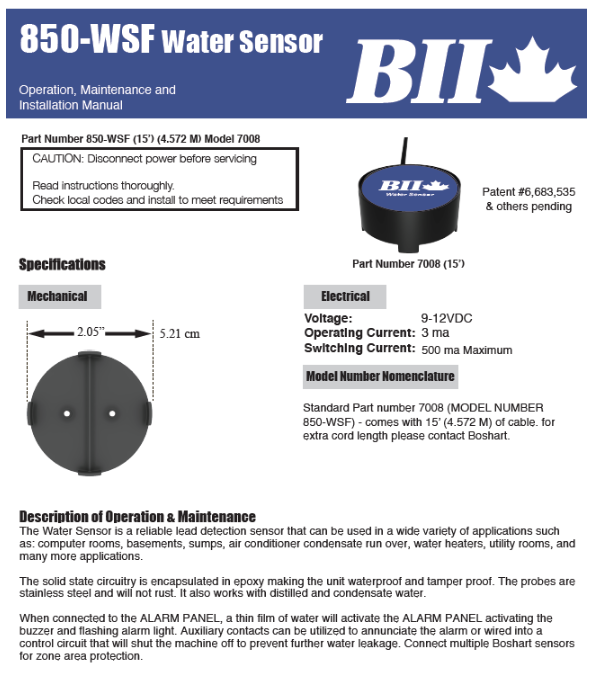

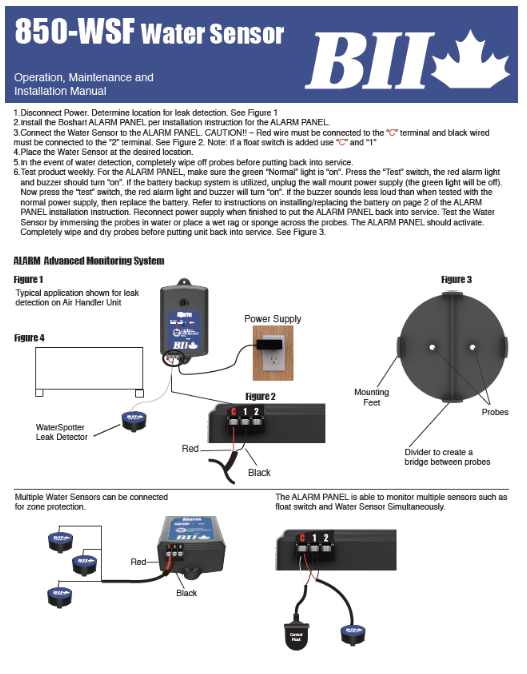

Below are the instructions and diagrams on how to install a the 850-WSF Water Sensor Probe on a Bosahrt 850H-00 alarm. (00 = No Switch / Cord)
