Well Caps

Do you have replacement O-Rings for the WTMLC, WTC-A, & WTC-C Series watertight well caps?

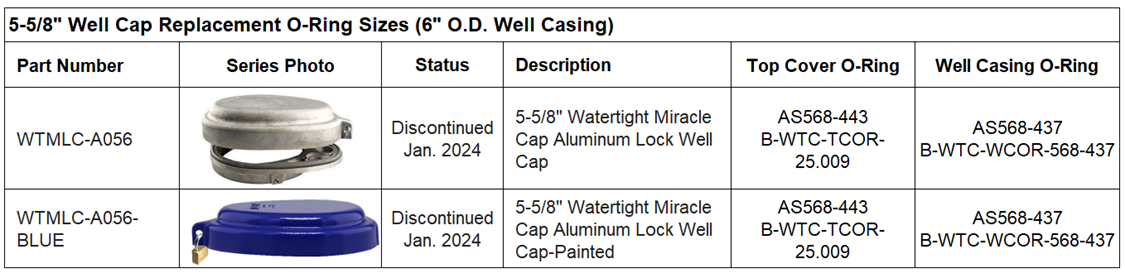

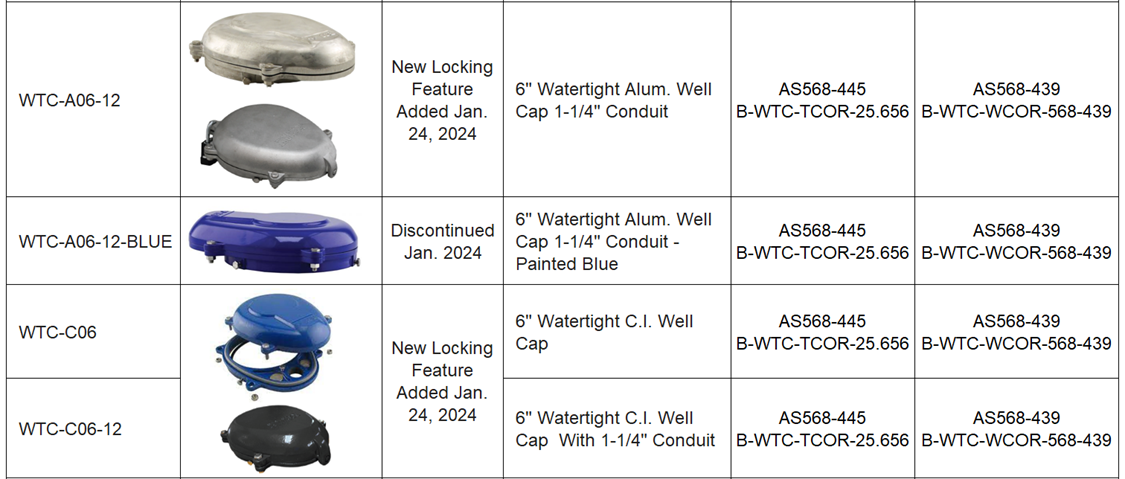

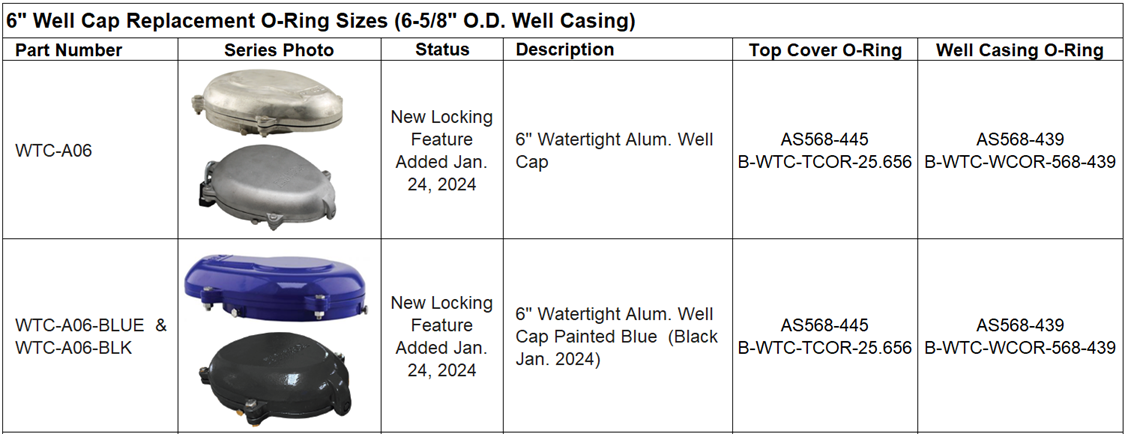

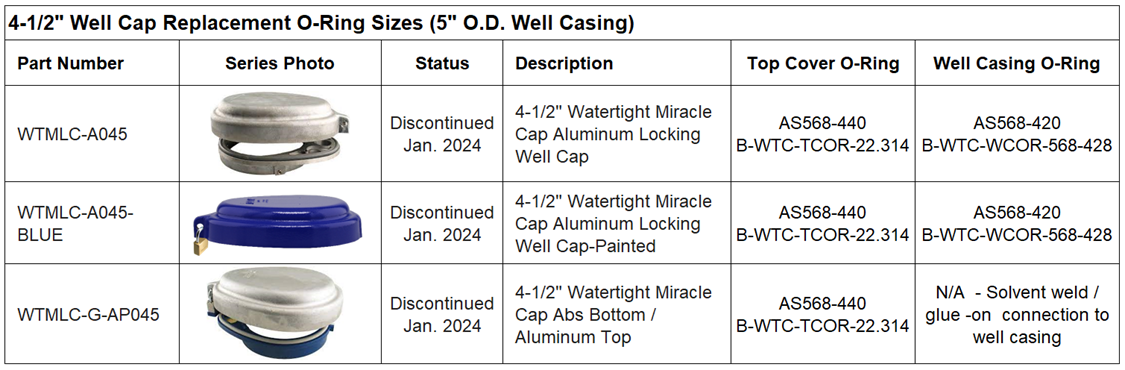

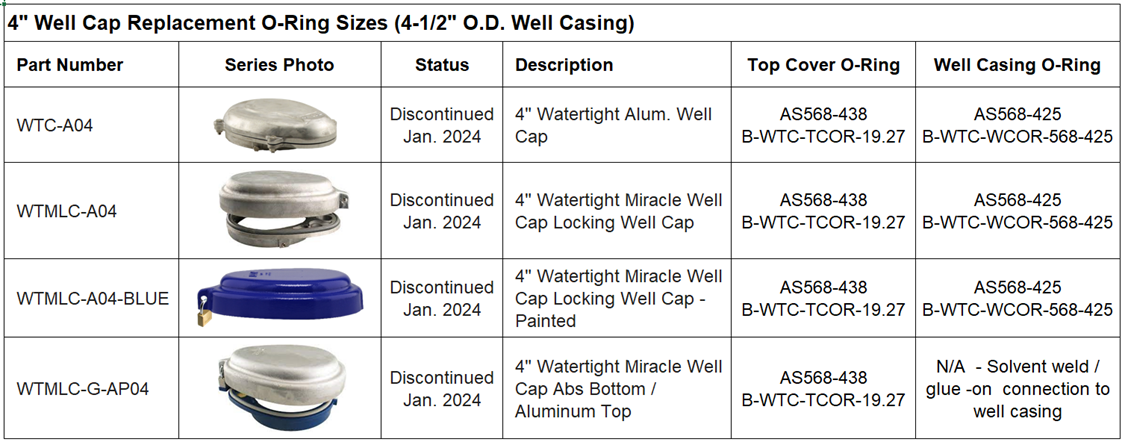

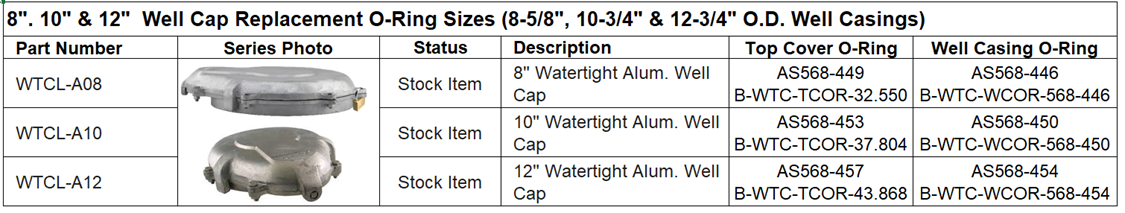

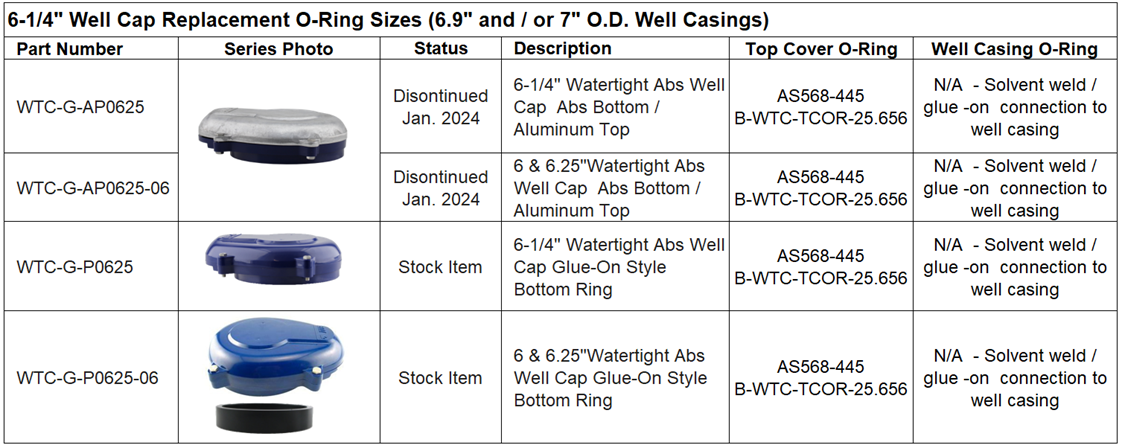

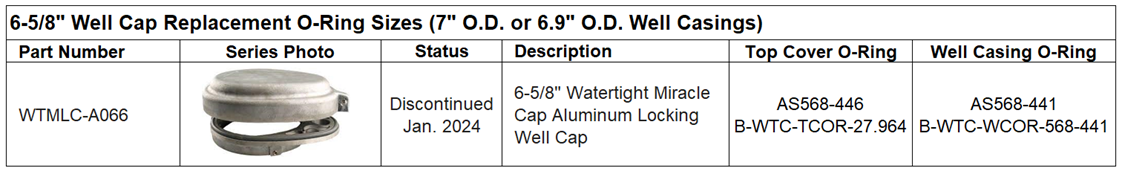

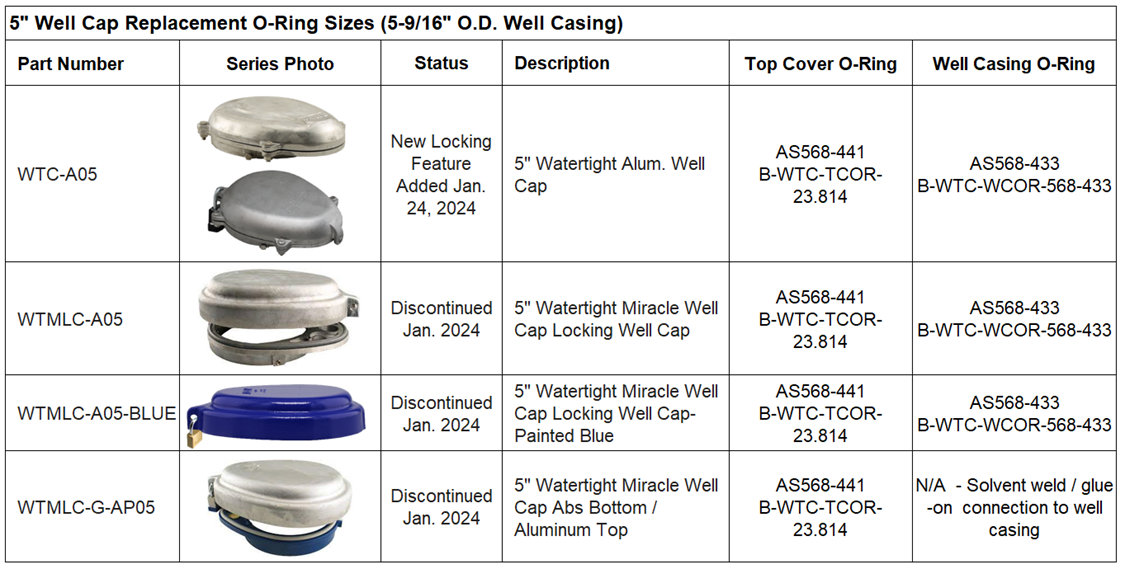

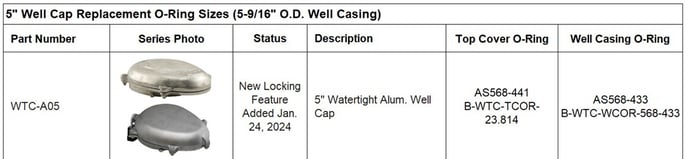

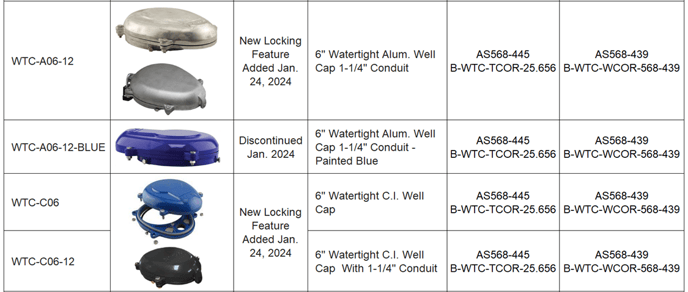

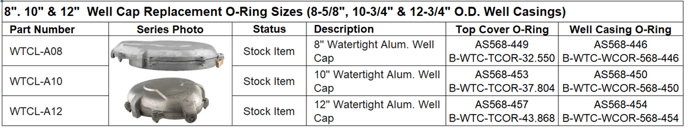

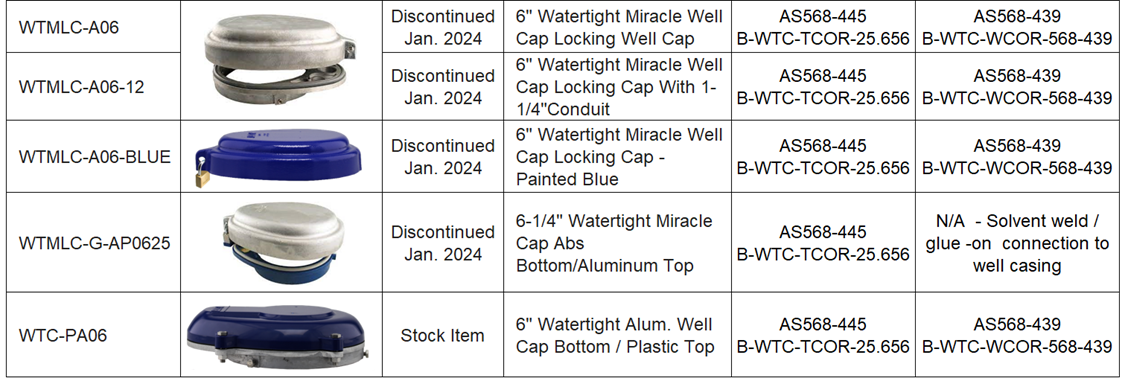

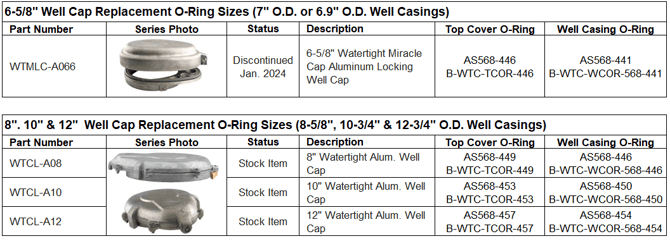

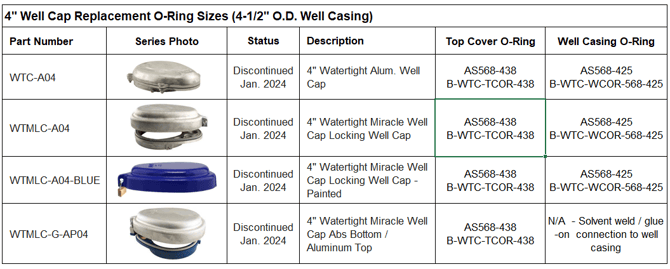

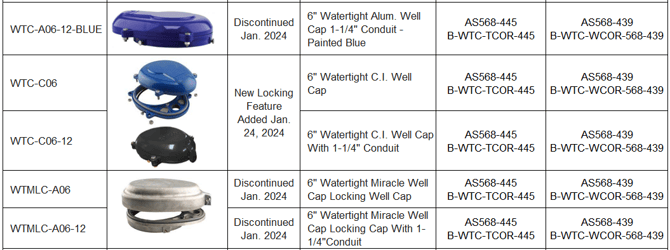

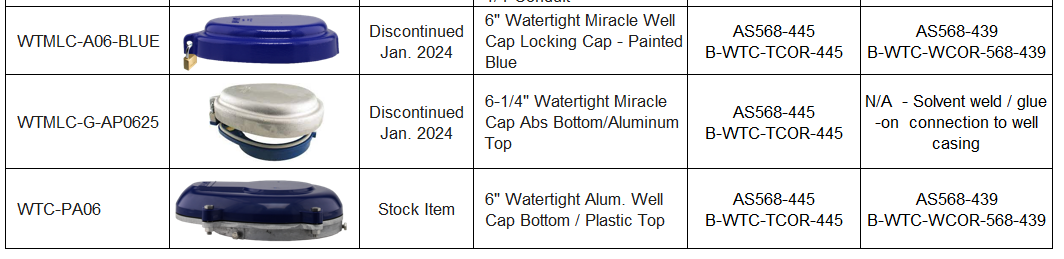

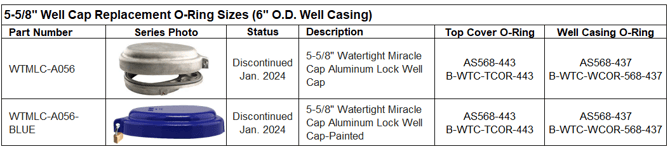

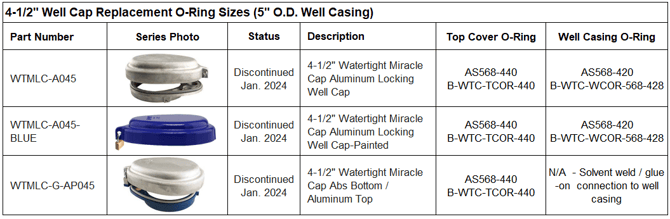

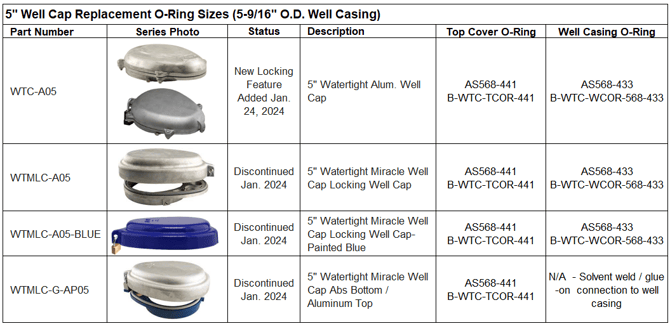

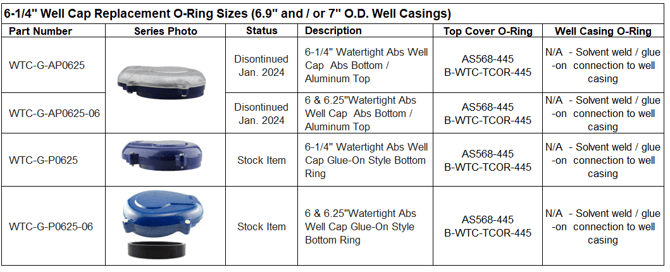

Yes, the replacement O-rings are AS568 Standard North American O-rings which are readily available from most O-ring suppliers. Boshart can also supply these O-rings when required. The charts below provide the size numbers for both the larger diameter top cover O-ring as well as the smaller diameter well casing O-ring.
