Do you have a B/W 1500 Series Induction Control Relay Data Sheet?

Do you have a B/W 1500 Series Induction Control Relay Data Sheet?

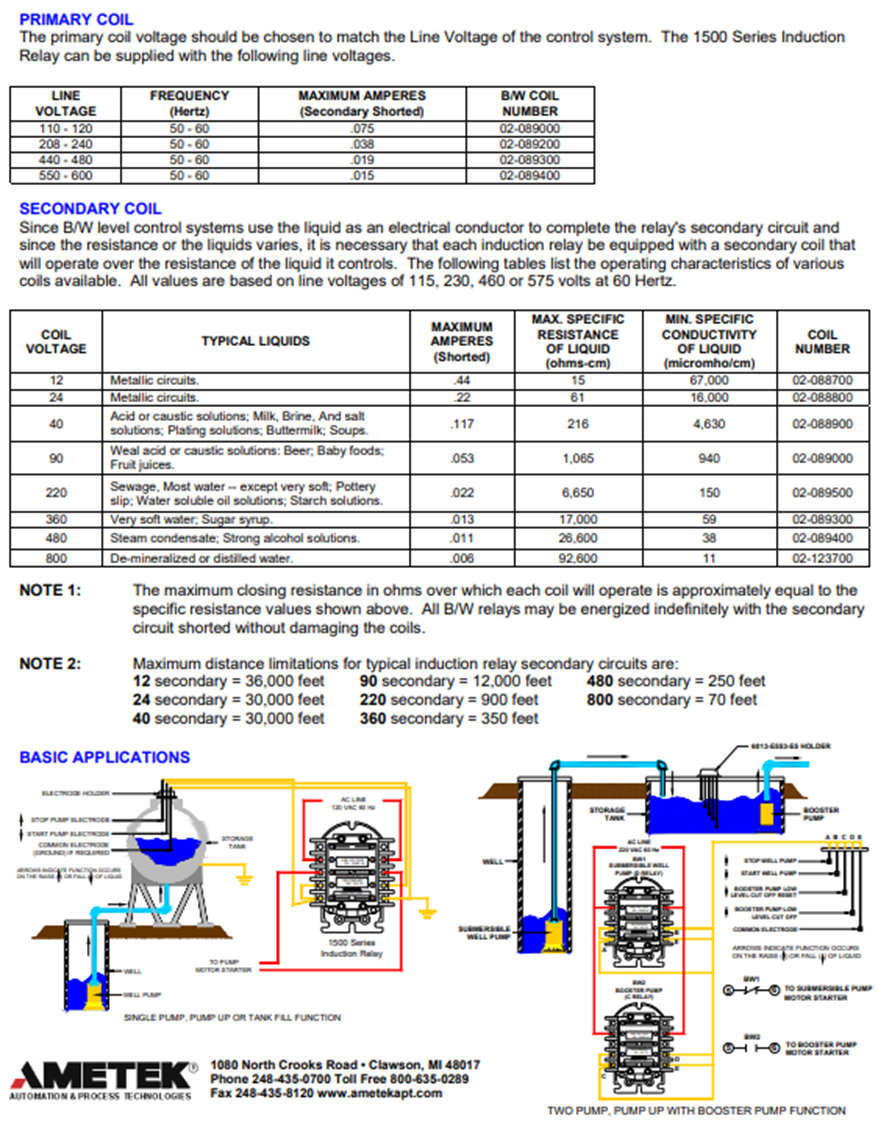

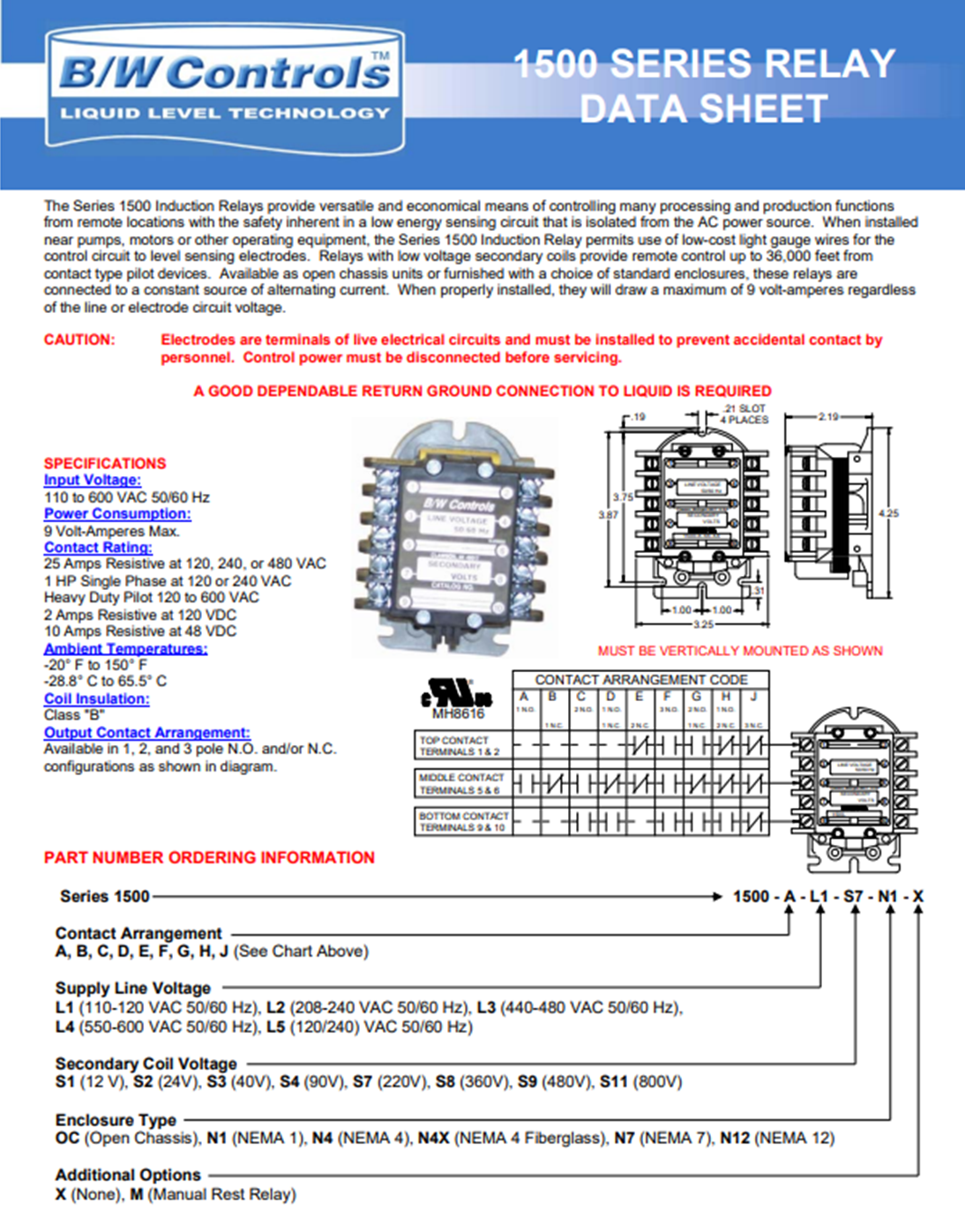

 Yes, the two-page B/W 1500 Series Relay Data Sheet is copied below, and it can also be downloaded at the link below.

https://www.drexelbrook.com/-/media/ametekdrexelbrook/download_links/datasheet-1500-induction-style-control-relay_english.pdf?la=en&revision=964958cd-333c-4da9-a742-f81c87c804c5

Additional Resources:

https://support.boshart.com/how-do-i-install-a-bw-1500-series-induction-relay

https://www.drexelbrook.com/-/media/ametekdrexelbrook/download_links/manual-1500-induction-relay-installation-guide.pdf?revision=73464e9c-d600-48d5-bfea-42e67530801f

https://support.boshart.com/does-my-induction-control-relay-system-require-2-or-3-electrodes

https://support.boshart.com/how-long-can-the-wire-between-the-induction-type-relay-to-electrode-be

https://support.boshart.com/can-i-ground-my-induction-type-relay-to-a-metal-tank-or-pipe
