      Are replacement parts available for the 0865 Series Wall Hydrants?

      Yes, we carry replacement parts for the BOSHART Model No. 0865 Series Wall Hydrants. They available items are listed below along with a parts diagram and some photos to assist in selecting the proper parts required.   ITEM #                  PRODUCT #         DESCRIPTION

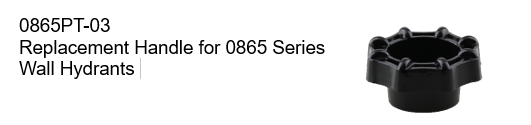

      1                          0865PT-03           REPLACEMENT HANDLE


      25                       0865PT-10           VACUUM BREAKER CAP


      21 to 24             0865PT-123         VACUUM BREAKER BODY


      6                         0865PT-98           REPLACEMENT STEM RUBBER (NBR) PACKING
      4                         0865PT-99         REPLACEMENT STEM PACKING NUT
       10 to 16            0865PT-PA          REPLACEMENT PLUNGER ASSEMBLY

      4-7 & 8-16        0865PT-SA4       REPLACEMENT STEM ASSEMBLY 4"
      4-7 & 8-16        0865PT-SA6       REPLACEMENT STEM ASSEMBLY 6"
      4-7 & 8-16        0865PT-SA8      REPLACEMENT STEM ASSEMBLY 8"

      4-7 & 8-16       0865PT-SA10      REPLACEMENT STEM ASSEMBLY 10"
      4-7 & 8-16       0865PT-SA12      REPLACEMENT STEM ASSEMBLY 12"
      4-7 & 8-16       0865PT-SA14      REPLACEMENT STEM ASSEMBLY 14"

      4-7 & 8-16        0865PT-SA16      REPLACEMENT STEM ASSEMBLY 16"
      4-7 & 8-16        0865PT-SA18      REPLACEMENT STEM ASSEMBLY 18"
       4-7 & 8-16       0865PT-SA20      REPLACEMENT STEM ASSEMBLY 20"

       4-7 & 8-16       0865PT-SA22      REPLACEMENT STEM ASSEMBLY 22"
       4-7 & 8-16       0865PT-SA24      REPLACEMENT STEM ASSEMBLY 24"

      Measuring to determine the stem length for a Wall Hydrant

      To ensure you order the proper replacement stem assembly length, measure the length of tube from just behind the body flange to the hex. If it reads 10" then you have a 10" lawn faucet.

      When measuring the stem itself to make sure you have the correct length, you must first compress the spring loaded plunger on the end and measure the total length. Then you subtract 3" to determine the size faucet it will fit.  A 13" total length stem will fit the 10" wall hydrant.

      0865 Cut-A-Way
